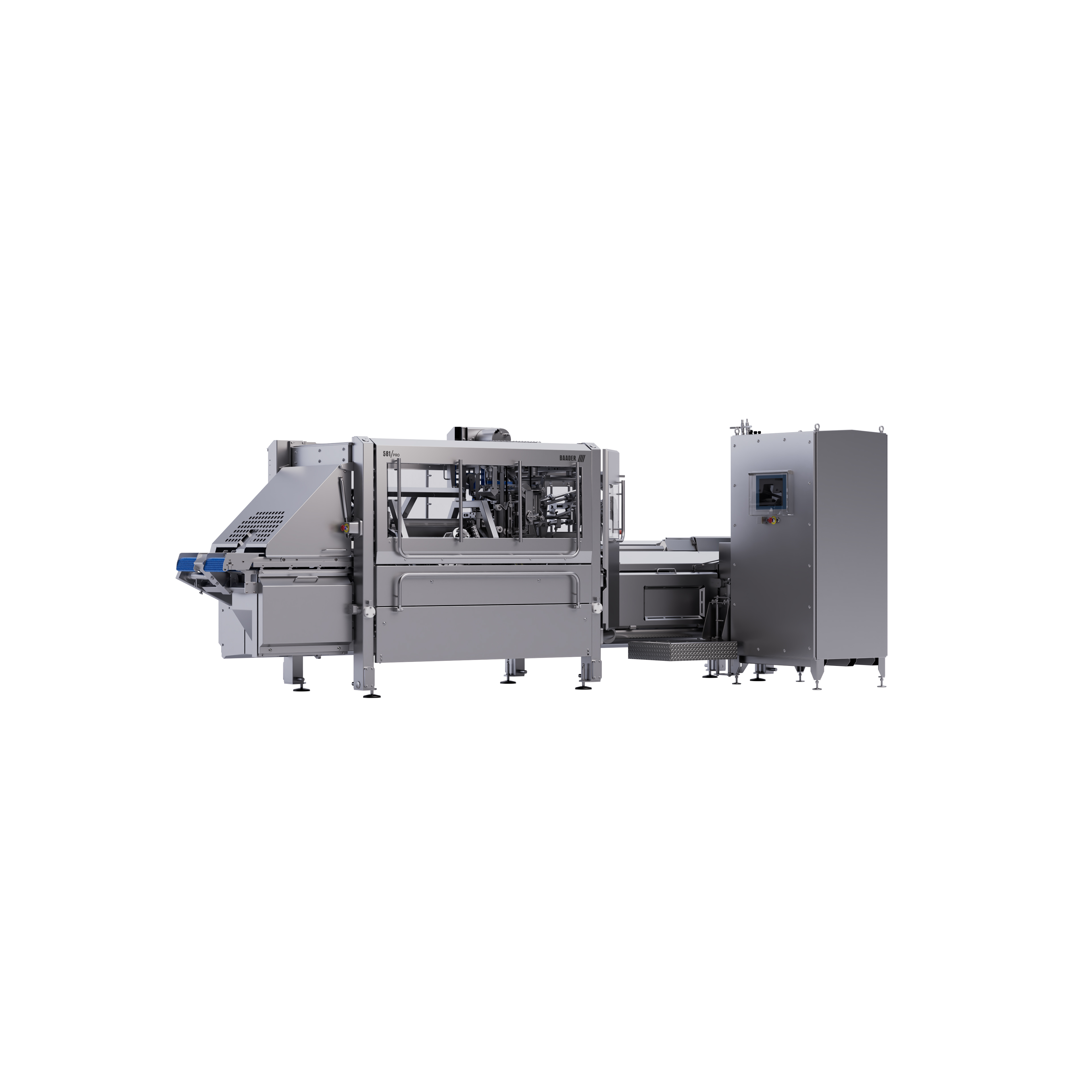

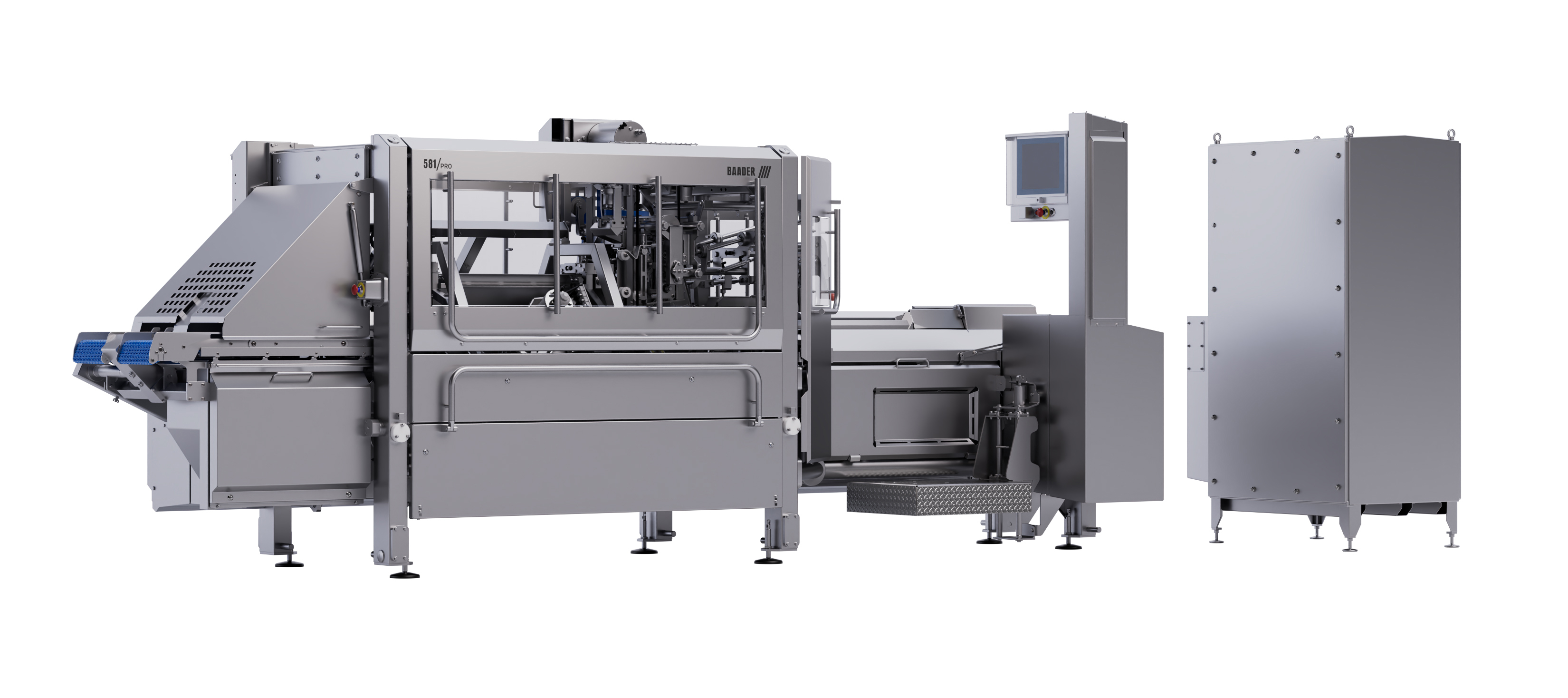

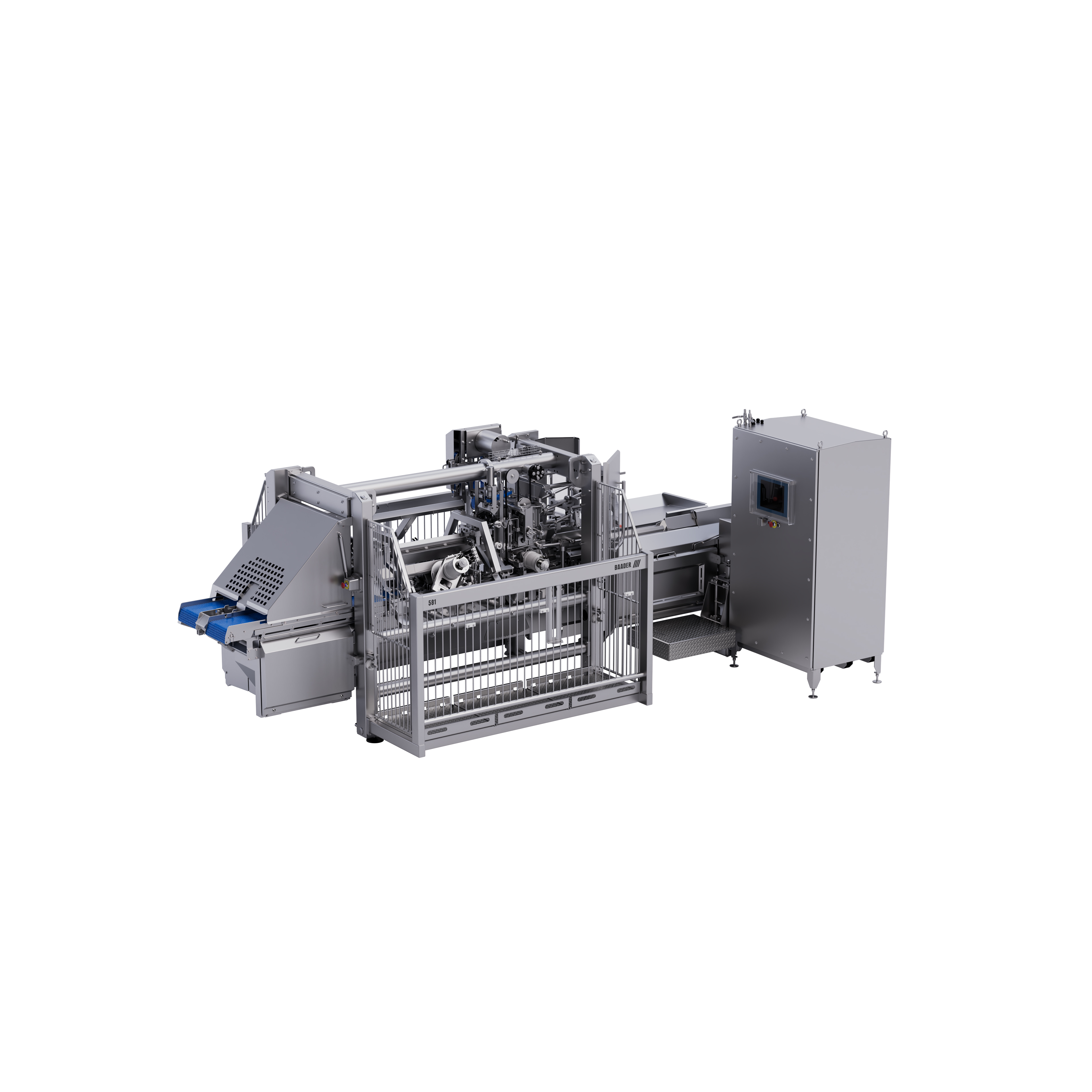

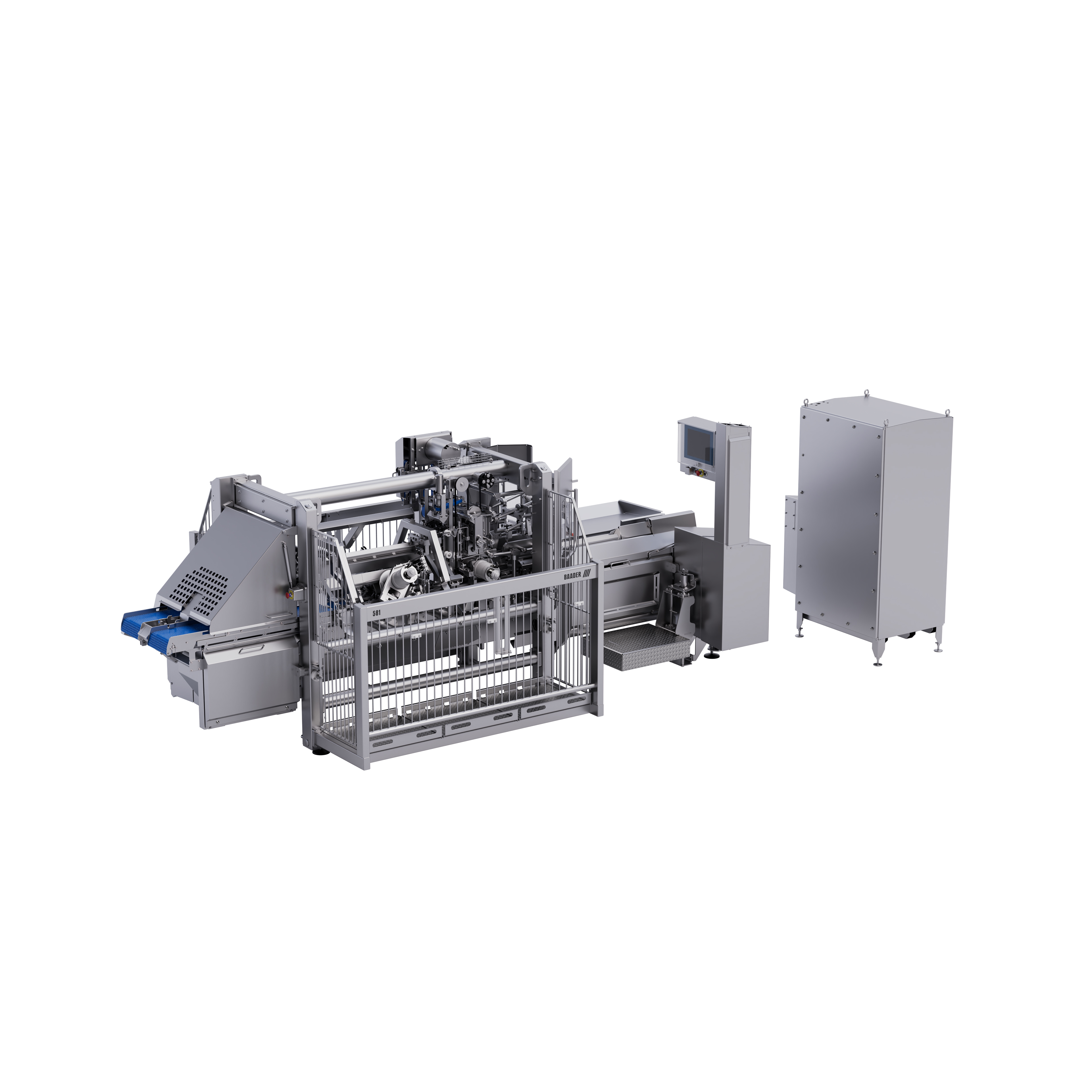

BAADER 581 Pro
Filleting and Trimming of Farmed Salmon, Trout, Wild Caught Coho, Sockeye, Tuna and Similar
Robust – Reliable - Intelligent
Mastering the Art of Filleting
We watched human hand filleting pros to see how finely and precisely they separate the fillet from the main bone by hand. Then the challenge was to do it as well - or better.
The BAADER 581 Pro is the latest innovation in the filleting section from BAADER. It represents probably the most powerful and advanced filleting machine in the world.
These in-depth studies resulted in the development of the BAADER 581 Pro’s most innovative optional feature: the dynamic back knife.
The optional dynamic back knife offers outstanding possibilities for increasing the yield of the fillet and makes BAADER 581 Pro a yield winner. Depending on the fish's anatomy, the knives are automatically adapting to the upper back area of every single salmonid leaving as little flesh on the frame as a hand filleter would. Very narrow in the tail section but opening up to the wider backbones in the neck area. The result changes the common understanding of yield expectations for machine filleting.
The new layout of the BAADER 581 Pro has a 20% smaller footprint compared to its predecessor by streamlining the housing. The recently designed housing also reduces processing noise for a quieter production atmosphere.
It features individual fish measurement, offering operational flexibility for a wide range of fish species and different kinds of conditions.
Learn more about BAADER 581 Pro
Optimizing Output: How the BAADER 581 Pro came into being
Then the challenge was to do it as well – or even better”, says Mirko Pagels, who led the R&D team for the BAADER 581 Pro. “Depending on the fish’s anatomy, the knife is automatically adapted to the backbone. Individually, for every single fish.”
BAADER Sells Salmon Line to Skagerak Processing A/S
“Based on our research and experience we have chosen the salmon line from BAADER because it will guarantee us a reliable performance and most of all high yield.” says Bård Sekkingstad, Owner of Sekkingstad AS.
Benefits
- High speed – up to 25 fish/min.
- Consistent output quality – day in, day out
- Suitable for a range of different species (e.g. trout or wild salmon)
- Suitable for a wide range of fish qualities – from pre-rigor to defrosted, soft fish
- Easy to adjust and to maintain
Technical Data
- Working range (approx.):
Farmed salmon (gutted): 2 - 7 kg
Farmed trout (gutted): 1.2 - 5 kg
Wild caught coho (H&G): 2 - 4 kg
Wild caught sockeye (H&G): 2 - 4 kg
other species on request - Throughput:
Up to 25 fish/min
(optional with belly trim cutter - no speed reduction)
Features
Hygienic, Open and Flexible Design
- Consistent product flow - no stops
- Very gentle handling of the fish - less downgrades
Options
Dynamic Back Knife
- More yield due to dynamic cutting process along the main bone
- Knife pair is very narrow in the back and wider in the neck area
- Adjust itself to fish size without further tool usage
- Significantly less flesh remaining on the main bone
Belly Trim Cutter
- Photoelectric belly trim measuring system provides quick and accurate results without speed reduction
- Trimming parameters controlled via touch panel
- Quick changeover for different trim variations
High flexibility to different species and conditions
- Adaptable recipe management system allows for changes during operation
- Individual fish measurement
- High operational flexibility for different fish species and conditions
Optimal fillet quality
- Computer controlled active cutting tools
- Smooth surface as a result of reduced fillet stress during processing
- No gaping
High capacity, high throughput
- Consistent product flow – no stops
- Very gentle handling of the fish – fewer downgrades
- Fillets leave the machine tail first for subsequent skinning
Introducing a World Premiere – Dynamic Back Knife

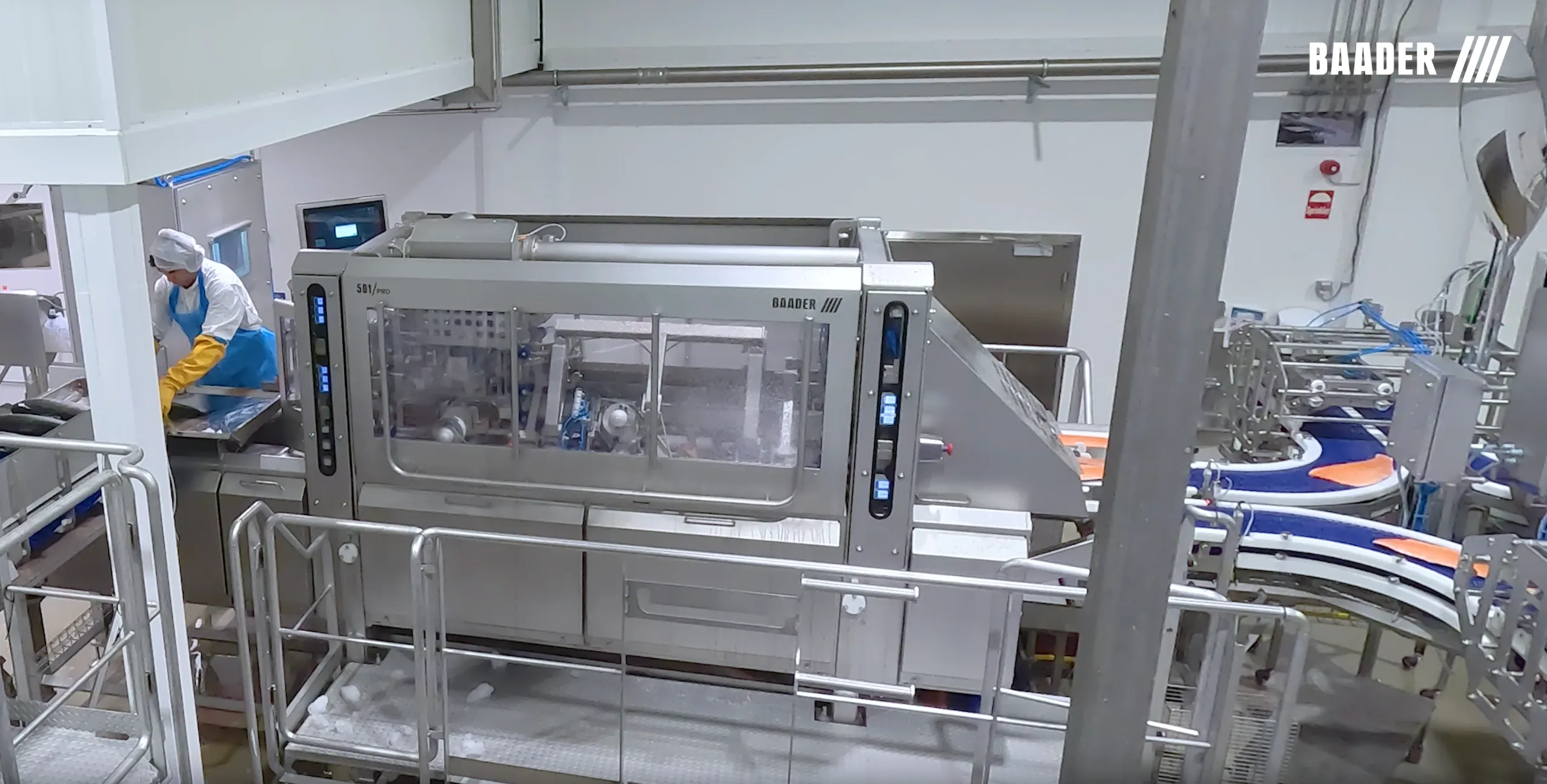

Filleting and Trimming Solution BAADER 581 Pro #1
Mirko Pagels, Manager Research & Development at BAADER, launch the BAADER 581 Pro – a filleting machine that represents the next generation in the evolution of robust, reliable and intelligent BAADER filleting solution for salmonids highlighting its most innovative feature: the dynamic back knife.
With Mirko Pagels
2:45 | Release Date 26.10.2020
