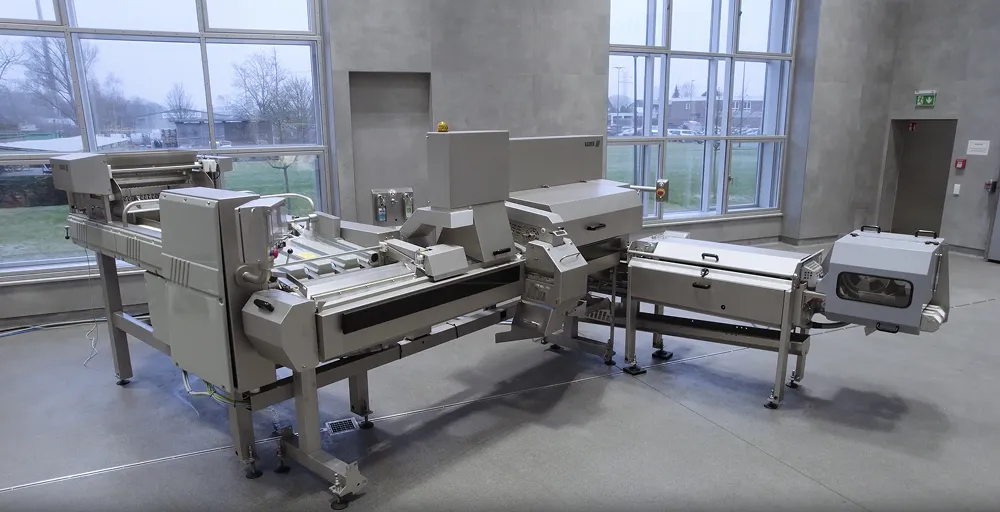

BAADER 221

Processing Solution for Pelagics like Herring and Mackerel

Home

////

Fish

Products

BAADER 221

From single components to fully automated solution

Best performance with a wide scale of opportunities

The solution for pelagic processing has a wide range of possibilities.

From manual fed heading and gutting to fully automated processing incl. skinning and portioning, everything is possible.

All components are developed for high-speed processing and are industry-proven.

The automatic version includes a distribution system for a constant product flow, a section for automatic feeding of each tray and a camera module to check the raw material before processing.

The BAADER 220 and BAADER 221 Processing Systems are the most flexible systems in the world.

Different line configurations are available to meet the customer’s demands and it is possible to combine new components with existing plant components.

Benefits

From single components to fully automated solution
High-speed processing – industry-proven
A wide variety of products possible
Skinning and piece cutting can be done with the BAADER 56
Tailor-made to your individual needs
1 supervisor for up to 5 lines when running with the automatic kit
Automatic fault detection with back/belly correction and sorting function

Technical Data

Fish species
Herring, mackerel (other species on request)
Working range (approx.)
Herring: 22–40 cm approx. 75–450 g
Herb herring: 22–40 cm approx. 75–450 g
Salted herring: 22–40 cm approx. 75–450 g
Mackerel: 25–42 cm approx. 200–600 g
Throughput
Herring: 340 trays/min.
Herb herring: max. 180 trays/min.
Salted herring : max. 180 trays/min.
Mackerel: max. 200 trays/min.
